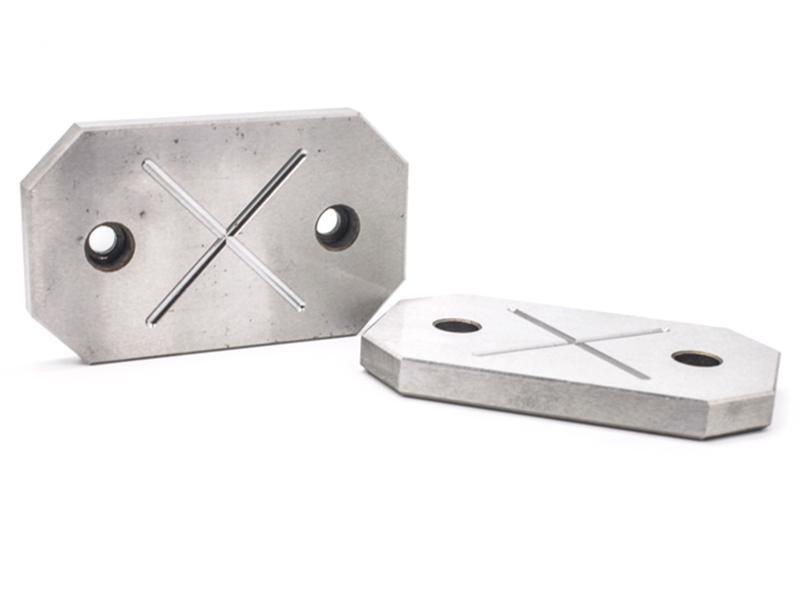

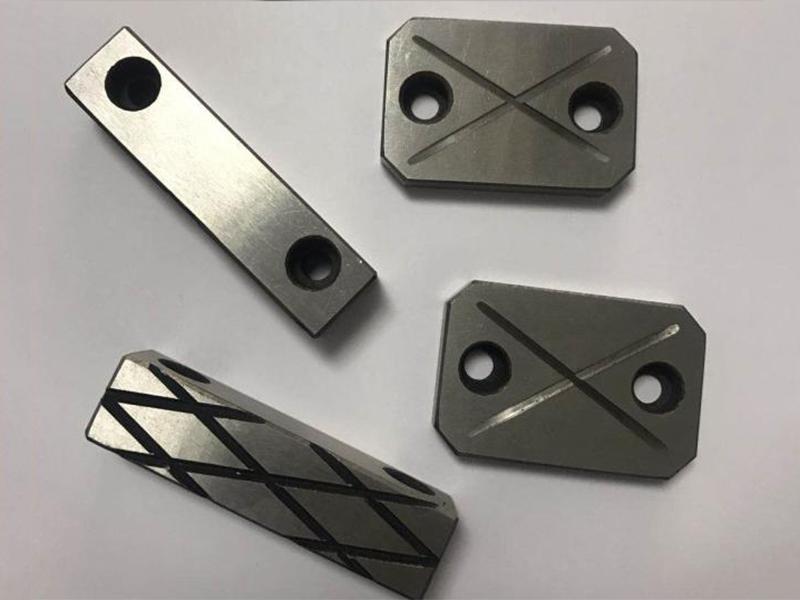

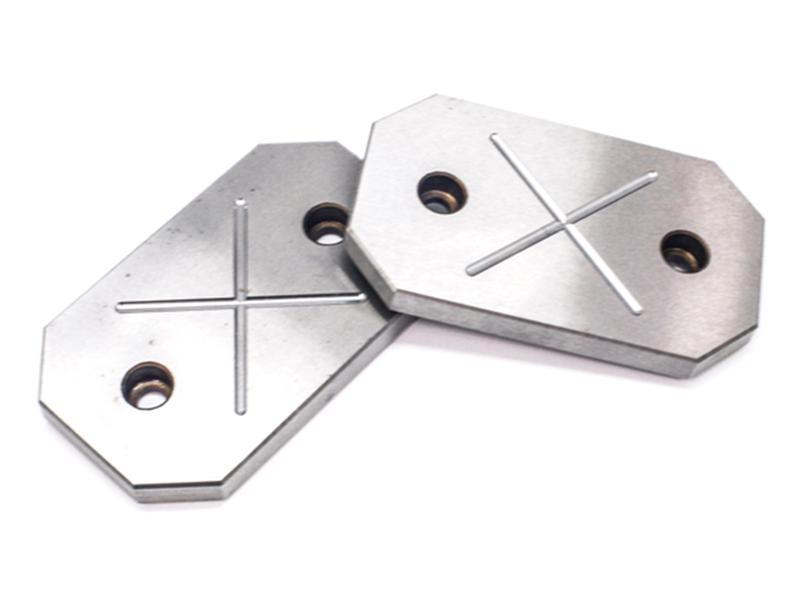

Mold Slide Wear Plates

Products description
Friction generated from sliding movements will cause damage to the slide block, which is why slide wear plates are used. These plates prolong the mold service life, and cut down replacement costs.

Our primary raw material is 40Cr with a hardness reaching 58-62HRC. Our slide wear plates have gone through the carburizing heat treatment to improve performance, and we also offer a variety of models, including SKD11, SKD61, SUJ2, SKH51, S45C, SKS3 and other customized types.

Features

Excellent wear resistance. The high content of Cr in the 40Cr material guarantees the stability of the slide wear plate because Cr is an extremely hard material.
High hardness. The hardness of the wear block can reach HRC58° or more after going through several heat treatment processes.
Excellent dimension stability. The precision measurement guarantees the dimensional stability of the slide wear plate.

Products specification

Type	W	L	H	H1	A	B	D	D	E	C
W30	30	40	10/1212	7		20	12	7	3	6
W30-L1	30	50	10/12	7		30	12	7	3	6
W 30-L2	30	50	10/12	7		40	12	7	3	6
W 40	40	50	10/12	7		30	12	7	3	6
W 40-L1	40	60	10/12	7		40	12	7	3	6
W 40-L2	40	70	10/12	7		50	12	7	3	6
W 40-L3	40	80	10/12	7		60	12	7	3	6
W 50	50	50	10/12	7		30	12	7	3	6
W 50-L1	50	60	10/12	7		140	12	7	3	6
W 50-L2	50	70	10/12	7		50	12	7	3	6
W 50-L3	50	80	10/12	7		60	12	7	3	6
W 50-L4	50	90	10/12	7		70	12	7	3	6
W 50-L5	50	100	10/12	7		80	12	7	3	6
W 60	60	60	10/12	7		40	12	7	3	8
W 60-L1	60	70	10/12	7		50	12	7	3	8
W 60-L2	60	80	10/12	7	40	60	12	7	4	8
W60-L3	60	90	10/12	7	40	70	12	7	4	8
W60-L4	60	100	10/12	7	40	80	12	7	4	8
W60-L5	60	120	10/12	7	40	100	12	7	4	8
W70	70	70	10/12	7	50	50	12	7	4	8
W70-L1	70	80	10/12	7	50	60	12	7	4	8
W0-L.2	70	90	10/12	7	50	70	12	7	4	8
W70-L3	70	100	10/12	7	50	80	12	7	4	8
W80	80	80	10/12	7/9	50	50	15	7/9	4	8
W80-L1	80	100	10/12	7/9	50	70	15	7/9	4	8
W80-L2	80	120	10/12	7/9	50	90	15	7/9	4	8
W80-1.3	80	150	10/12	7/9	50	120	15	7/9	4	8
W90	90	90	10/12	7/9	60	60	15	7/9	4	8
W1.00	100	100	10/12	7/9	70	70	15	7/9	4	8
W100-L1	100	120	10/12	7/9	70	90	15	719	4	8
W100-L2	100	150	10/12	7/9	70	120	15	7/9	4	8
W100-L3	100	180	10/12	7/9	70	150	15	7/9	4	8
W110	110	110	10/12	7/9	80	80	15	7/9	4	8
W120	120	200	10/12	7/9	90	170	15	7/9	4	8
W130	130	130	10/12	7/9	100	100	15	7/9	4	8
W140	140	140	10/121	7/9	110	110	15	7/9	4	8
W150	150	200	10/121	7/9	120	170	15	7/9	4	8
