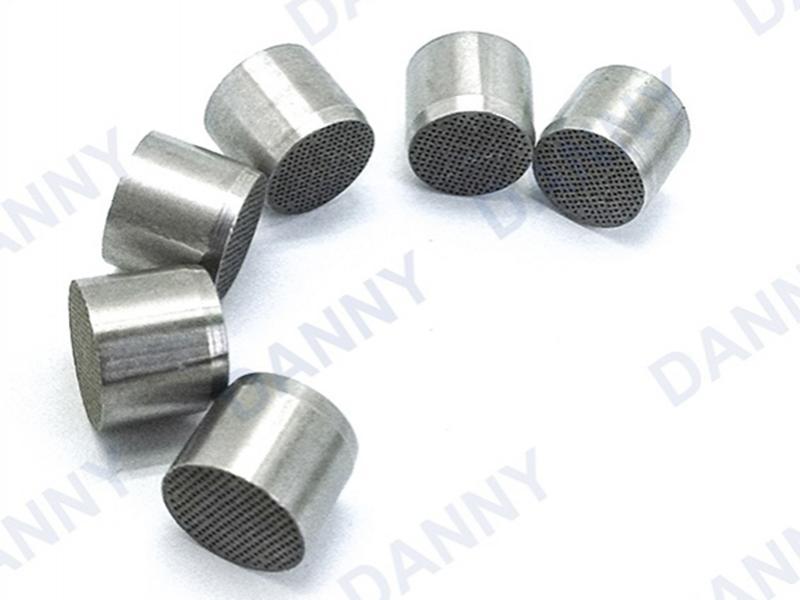

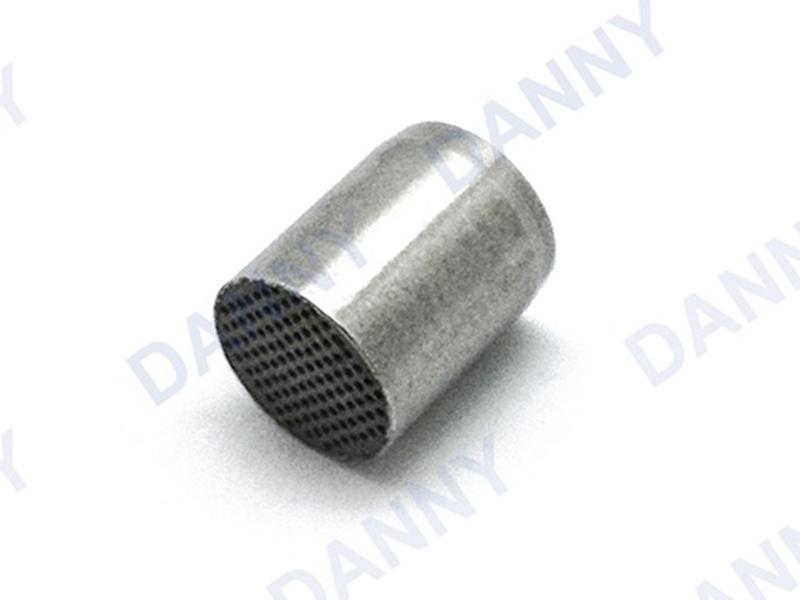

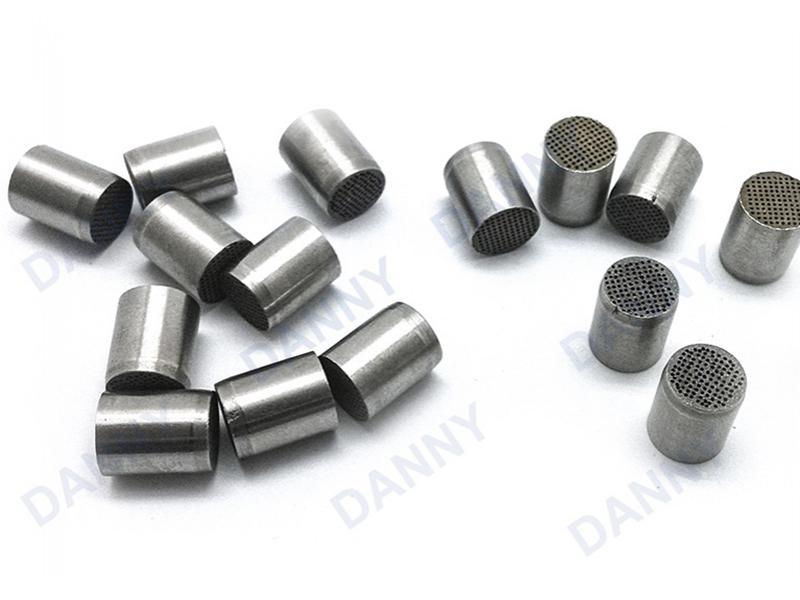

Mold Sintered Vents

  • Mold Sintered Vents
  • Mold Sintered Vents
  • Mold Sintered Vents

Products description
The mold sintered vents are used to vent air and other impurities during mold casting in order to improve the mold quality. It is widely used in mold castings of different types, including injection molds, gravity-casting molds and vacuum pressing and casting molds as well as low pressure casting molds.

Parameters
Materials Stainless steel(SUS304,SUS316), customizable
Outer Diameter 4-30mm
Length 10mm
Diameter of the hole 0.1-0.5mm
Features
  • This vent type features a high resistance to thermal impacts and features a long service life.
  • With a superior corrosion resistance, it is easy to clean and replace.
  • The ventilation effect is better due to an increase of 10-20% more pores when compared to a common air release plug.
  • The damage to machined components is reduced due to the use of stainless steel material with a high hardness.
  • The outside diameter of our products has a wide range of 4mm-30mm, though we can customize this to any specification needed.
  • The gas venting resistance is significantly reduced due to the smooth vent pores made of stainless steel. The air permeability is 5-10 times that of a common air release plug.
Types parameters
Type Outside Diameter/mm Height/mm Pore Diameter/mm Pore Number
YK03105 3.04 10 0.5 9
YK04105 4.04 10 0.5 16
YK05105 5.04 10 0.5 24
YK06105 6.04 10 0.5 37
YK08105 8.04 10 0.5 69
YK10105 10.04 10 0.5 121
YK12105 12.04 10 0.5 177
YK14105 14.04 10 0.5 241
YK16105 16.04 10/15 0.5 293
YK18105 18.04 10 0.5 301
YK20105/20155 20.04 10/15 0.5 349
Type Outside Diameter/mm Height/mm Pore Diameter/mm Pore Number
YK04103 4.04 10 0.3 24
YK05103 5.04 10 0.3 37
YK06103 6.04 10 0.3 52
YK08103 8.04 10 0.3 109
YK10103 10.04 10 0.3 148
YK12103 12.04 10 0.3 221
YK14103/14153 14.04 10 0.3 261
YK16103/16153 16.04 10/15 0.3 333
YK18103 18.04 10 0.3 385
YK20103 20.04 10 0.3 481
Type Outside Diameter/mm Height/mm Pole Diameter/mm Pore Number
YK03102 3.04 10 0.2 21
YK04102 4.04 10 0.2 37
YK05102 5.04 10 0.2 61
YK06102 6.04 10 0.2 89
YK08102 8.04 10 0.2 157
YK10102 10.04 10 0.2 177
YK12102 12.04 10 0.2 261
YJ16102 16.04 10 0.2 423
