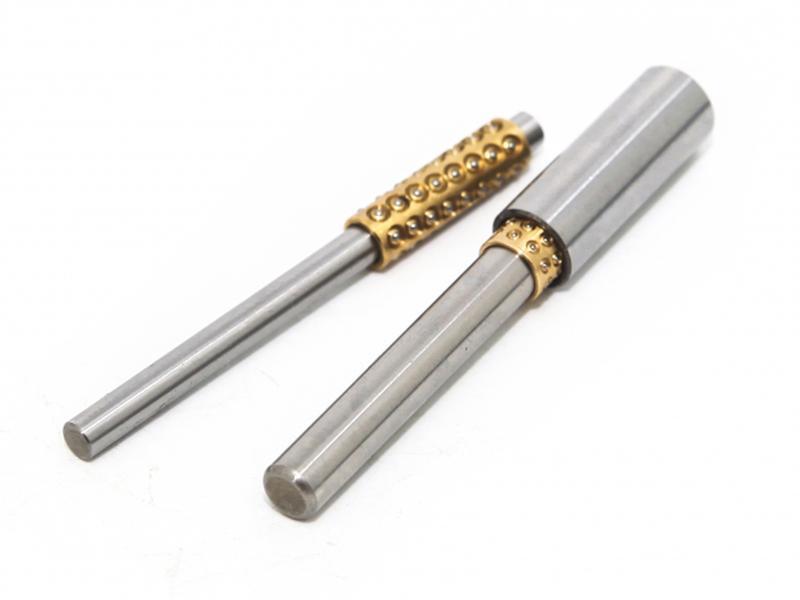

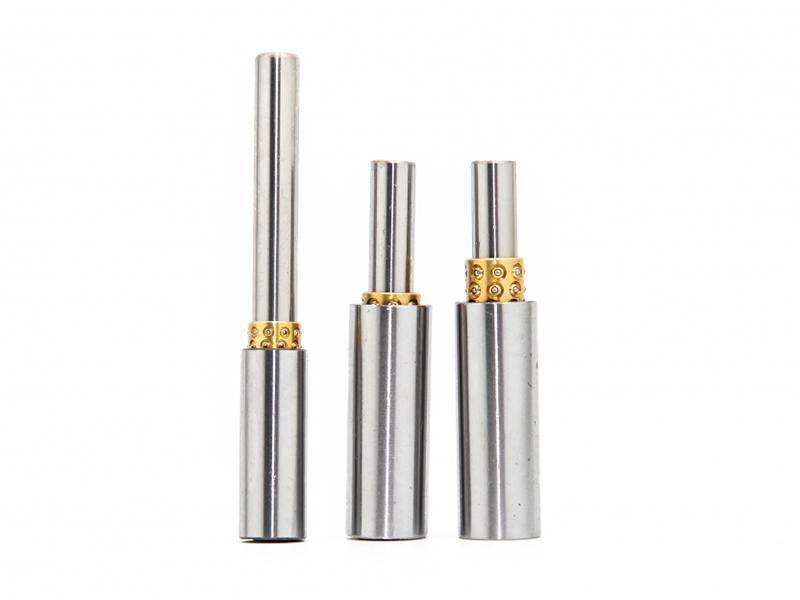

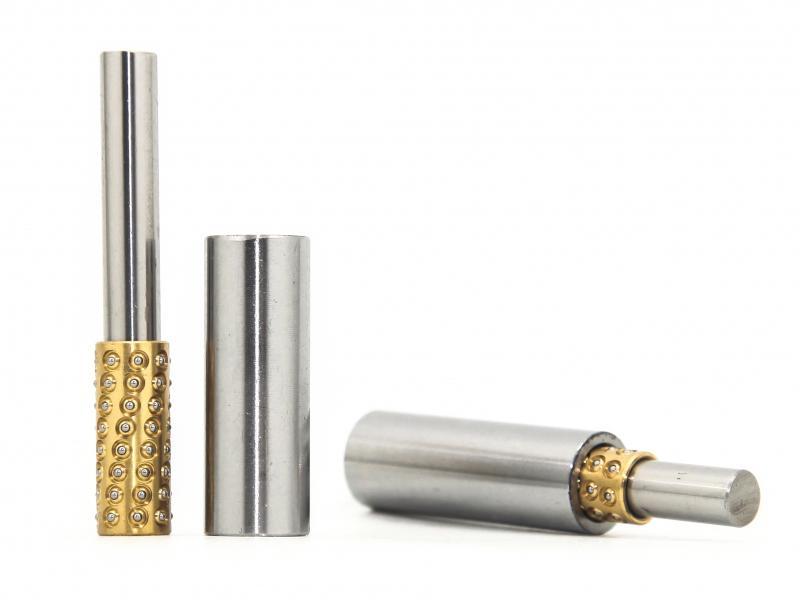

Traditional methods for the production of ball bearings is not always the best, because the shaft will match the hole gap, which causes a larger kinematic friction coefficient, and a slight swing of the shaft during the machining process. To solve those issues, we use miniature ball bearing guide sets with an interference fit mechanism. This means rolling friction is substituted for sliding friction, and will be considerably reduced. This extends the service life for all of the tools.
Both high-precision liner movement and transmitting torque by paired rotation can be accomplished with our miniature ball bearing guide sets.Features
|Surface roughness||within Ra0.025|
|Manufacture size||from 0.1mm to 6000mm|
|Standard||GB,JIS,DIN,AISI international industrial standard|
|The tolerance of guide shaft diameter||The tolerance of fixing base diameter|
|Shaft diameter||The tolerance of shaft diameter||Fixing base diameter||H7|
|2||0 -0.005||7-10||+0.015 0|
